商品类型:表面贴装设备周边系列

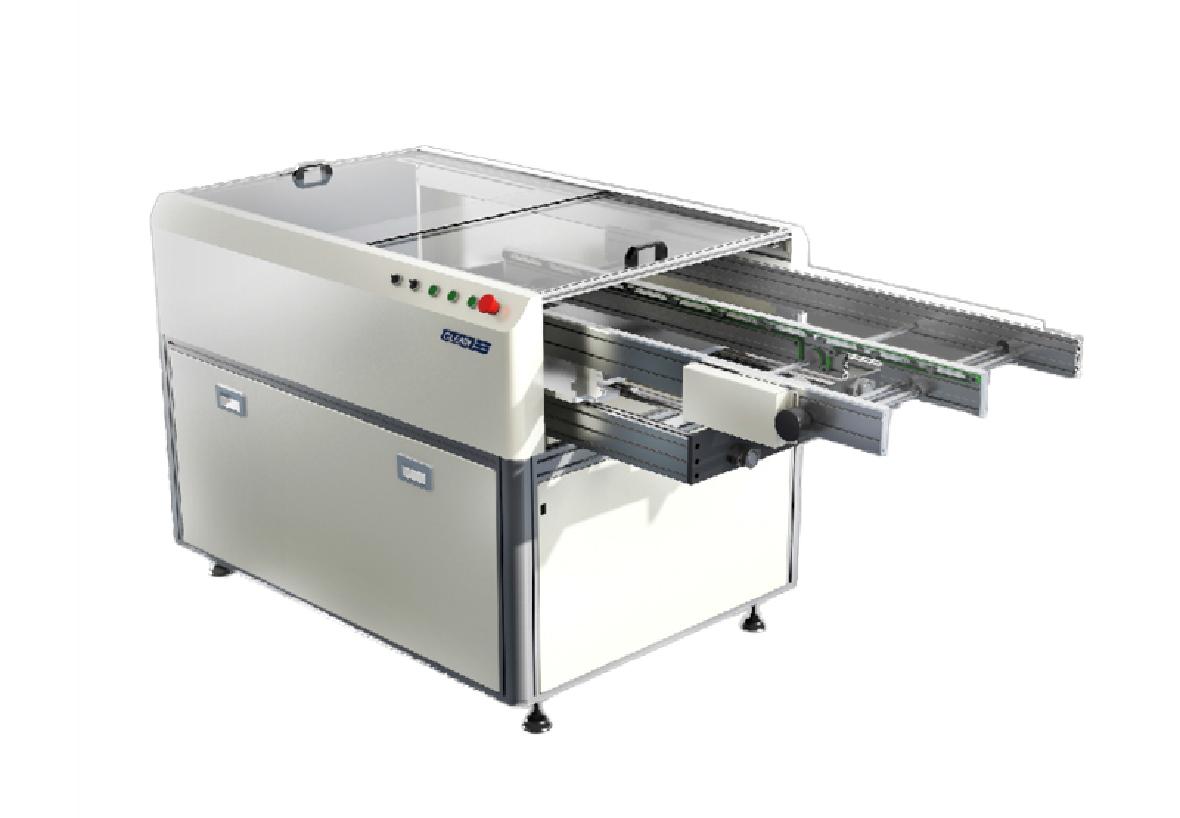

产品描述:用于一条较长的SMT生产线上,提供一供人员或周转车往来穿行的安全通道。也可以在一定范围内满足生产线长度变化的需求。
下载列表:
咨询电话:051265650260
用途:
用于一条较长的SMT生产线上,提供一供人员或周转车往来穿行的安全通道。
也可以在一定范围内满足生产线长度变化的需求。
Aoolication:
In a long SMT line,the shuttle gate provides a safe gate for persons or cars to go across.also good for length changes
of a SMT line
特点: Feature:
a)伸缩动作平衡 准确。 a)Smooth and accurate shuttle
b)灵敏的反射光电感应器,安全系数高。 b)Sensitive RReflection Sensor gives a high security
c)伸缩量可调节。 c)Adjustable stroke
d)PLC控制系统。 d)PLC Control system
Model | 型号 | GS-460-1500 |
Overall Dimension | 机台尺寸 | (L)1000*(W)830*(H)1000mm |
Track width | 传送宽度 | Min50-Max460mm |
PCB Size(L*W) | PCB尺寸(L*W) | Min50*50-Max460*500mm |
Conveyor Height | 传送高度 | 920±30mm |
PCB Conveyor Direction | 传输方向 | 左至右 |
Track Height(length of the extension) | 伸缩长度 | 500mm |
Cycle | 循环周期 | 12S |
Power supply | 电源 | 220V 50HZ |
Power Consumption | 功率 | 0.2KW |
Weight | 机台重量 | about248KG |
